In this HowTo tutorial you’ll learn how to do water detection with an Android device, the Valarm Pro app, and a Yoctopuce Yocto-Knob. You can also use the Valarm Tools Cloud with other connector hardware like WiFi and Ethernet sensor hubs.

Learn more about cost-effective water monitoring on our industry page for water monitoring solutions and systems.

Note that this is an old blog post using our legacy Android app. We recommend using dedicated sensor hubs since they’re more reliable and robust for your water and flood monitoring needs.

Questions?

Please don’t hesitate to Contact Us at Info@Valarm.net and we’ll work with you, your teams, and your organization to deploy your most effective remote monitoring solution.




1. First, to use an Android device for water detection, get Valarm on your device from the Google Play store. We recommend using a dedicated device (Android devices like the Sony Xperia U ST25 are getting cheaper every day!) for applications like this.

Valarm is available on the Google Play store

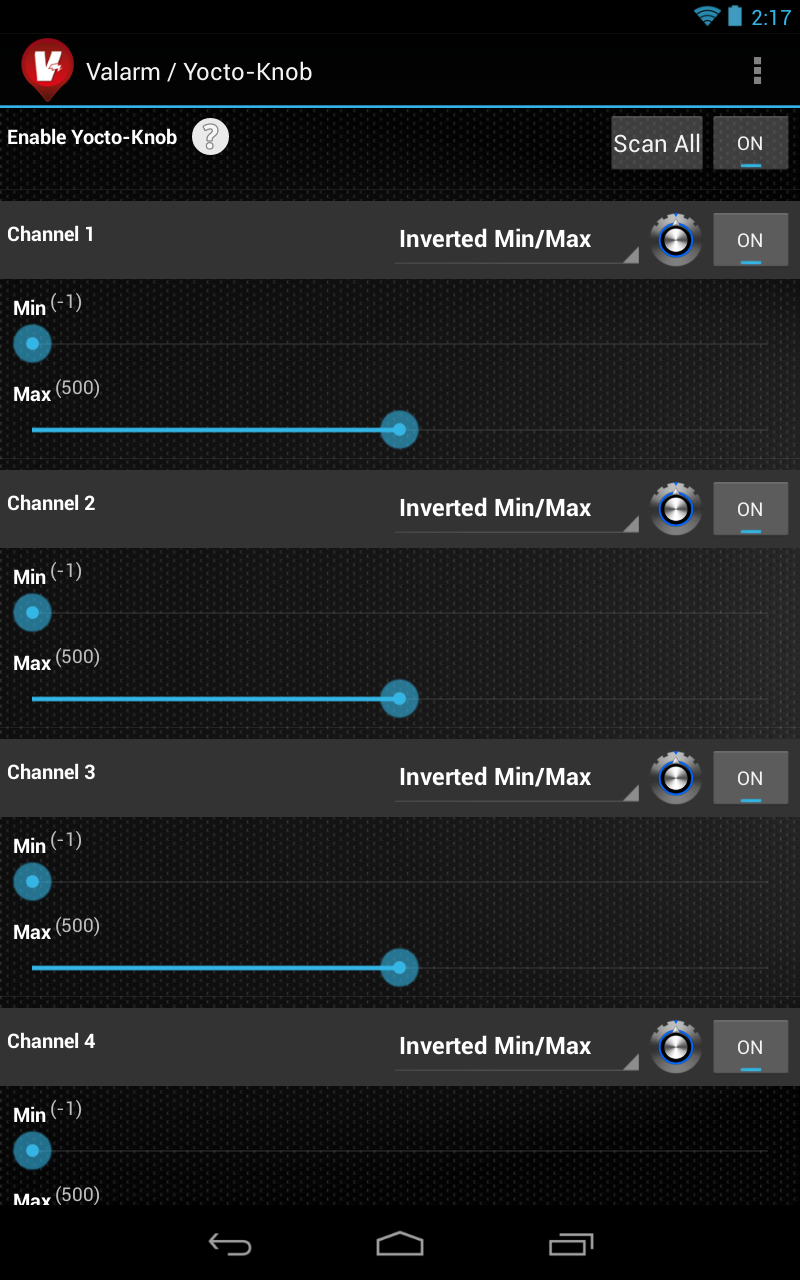

2. Next, in the Valarm app go to the Yoctopuce settings screen to set up your Yocto-Knob electrical resistance sensor for water detection.

ValarmYoctoKnobSettingsScreen

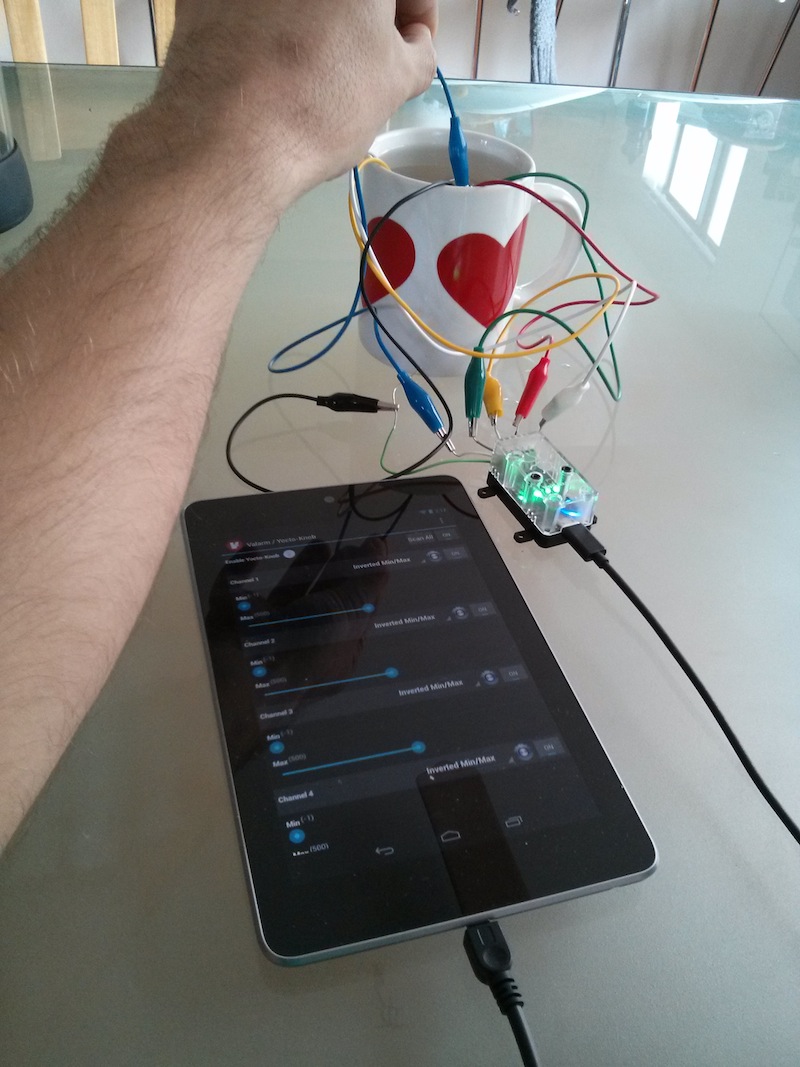

3. Connect a wire to the ground as well as however many of the Yocto-Knob lead wires you would like to use (up to 5). Each lead provides you with a threshold for the water level that is important for you. For example, with 5 wires you could put each one an inch apart and have Valarm alert you via text message or email if any of the wires are triggered. Then based on which wire is triggered you will know how high the water is, e.g., 1, 3, or 5 inches.

ValarmYoctoKnobWiresSetup

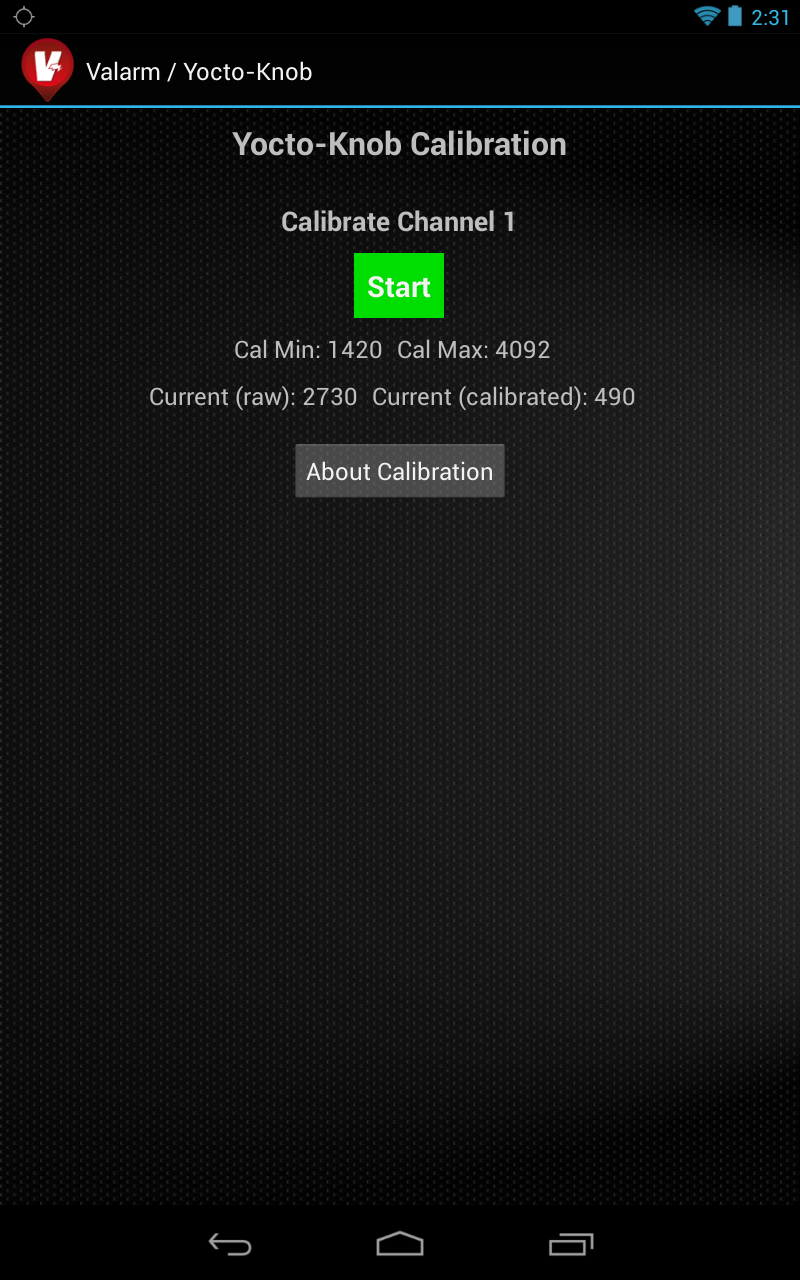

4. Now we will calibrate each of the channels. Tap the calibration button then begin calibrating. While you are calibrating Valarm, submerge the ground wire in a water source (tea and coffee cup used in the example image above) and dip the lead you are calibrating into the water. Take the lead out of the water while still calibrating and dip it in a few more times to calibrate Valarm and the Yocto-Knob for a reasonable threshold. Do this for as many channels (up to 5) as you would like to use. If you just want to know if water is present and not measure specific heights then you will only need to calibrate one channel.

ValarmYoctoKnobCalibration

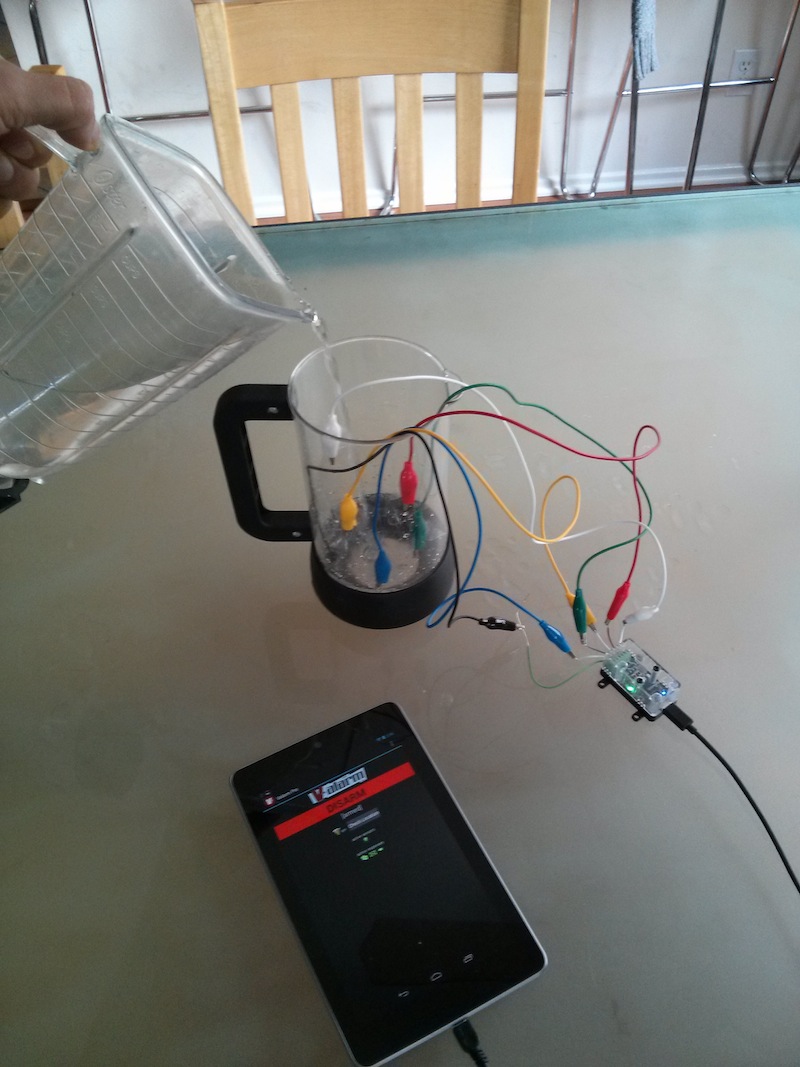

5. With Valarm and Yocto-Knob calibrated we can set up our water detection scenario. In this example we’ve used a French Press (also makes great coffee and tea!) to demonstrate Valarm’s ability to alert you to different heights and water levels. Set up each wire in your scenario to your desired level.

ValarmYoctoPouringWaterFloodDetection



6. For water detection, use the Inverted Min/Max option for each Yocto-Knob channel since we will get an increased resistance measurement when water has reached each level. Use the Scan All button to see what kinds of measurements you get with your wires in and out of the water. Here we found that values above 500 occur when the wire is submerged. So we set the max to 500 meaning Valarm will trigger alerts when water reaches this sensor wire.

ValarmYoctoKnobSettingsScreen



7. Set up your Valarm alerts to send out text messages (SMS) and/or email messages whenever a certain water height is triggered. Post all of your data to the web at tools.valarm.net for visualization, data export/download, and analysis.

ValarmArmedWaterAlertToast





8. Now our water detection unit is complete and Valarm is armed! The screenshot above shows a water level trigger being uploaded to tools.valarm.net and an alert being sent out via emailCheck out our blog for other use cases such as Valarm for remote home monitoring or Valarm with a laser pen and light sensor for intruder detection. Try out Valarm for a variety of things like hydroponics and aquaponics! Tell us what you are using Valarm for and suggest a use case by email: info@valarm.net.
